u-sense energy drives

Connecting simple asynchronous motors with the IIoT

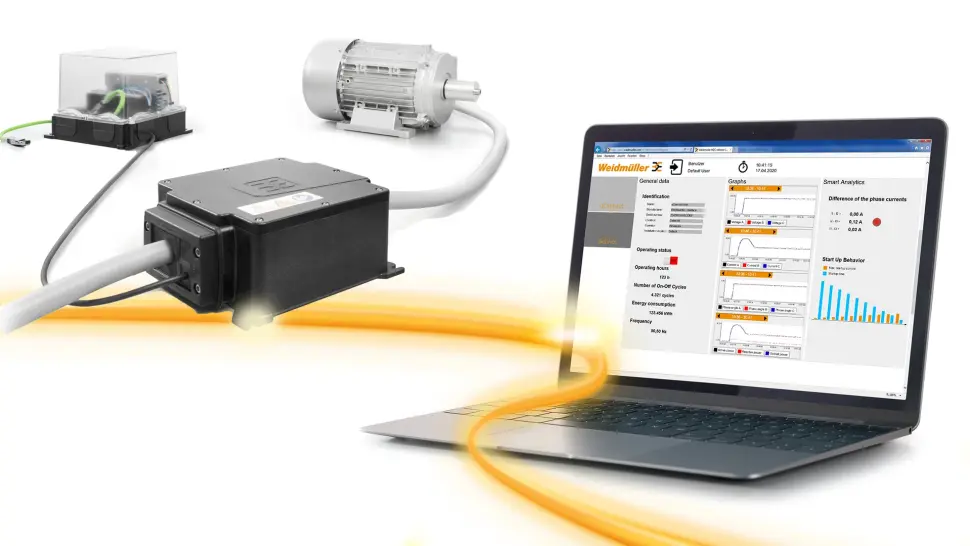

u-sense energy drives is an industrial solution for providing electrical data. It can be easily integrated into existing systems and take into account all connection variants of electric motors. Due to a smart pre-processing unit, u-sense provides all data required for monitoring or predictive maintenance. In combination with analytics software, errors can be identified automatically to recommend appropriate actions.

The benefits of the IIoT infrastructure

Easy Industrial IOT integration

u-connect makes it easy to integrate electromechanical motors into the Industrial IOT.

Increased efficiency through status recording

Plannable service activities and display of the current electrical measured values of the motor.

Predictive maintenance

Minimizing the risk of machine downtime and increasing efficiency and availability.

On premise monitoring

Maintain control over your data and simply have their security under control.

u-sense energy drives Product innovation

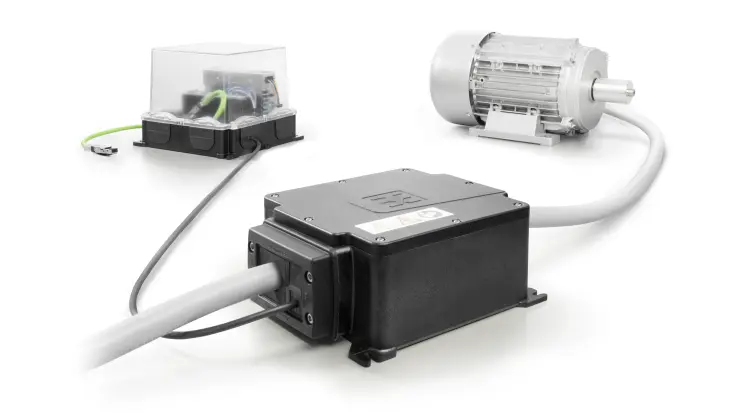

Easy integration into the existing connection line of the motor

Easy to install

The particularly simple integration into existing infrastructures ensures short downtimes.
The IP65-protected housing enables installation close to the motor.
All communication lines can be quickly wired due to PUSH IN connection technology.

Download White Paper

Comprehensive motor monitoring

The integrated pre-processing unit provides all important data on the connected motor, such as status, switching cycles, starting behaviour, rated current and voltage, active and reactive power, deviation between phases, and much more.

Reliable data transmission

The IIoT integration is realised via Modbus. Visualisation and data conversion to OPC UA are provided by Weidmüller u-control. So the measured values can be displayed and used via PC, smartphone, or tablet regardless of location.

Discover our AR application

Experience u-sense energy drives in our augmented reality application. Navigate through the various benefits and features of u-sense energy drives and learn all about the installation of our industrial solution.

Go to AR app (external link)

The quickly installable retrofit solution

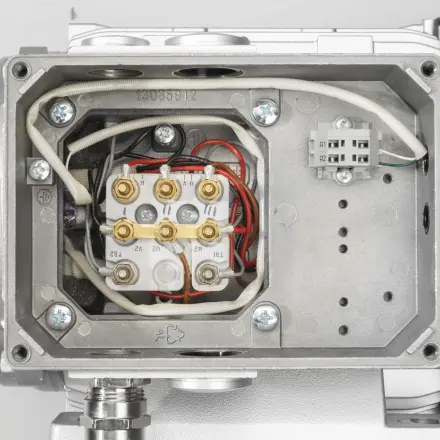

**Retrofitting – Easy to connect**
Integration into existing power lines, short downtime.

**Industrial robustness - Ready for hard environments**
Integration into industrial environments thanks to protection class IP 65, vibration proof modern PUSH IN connection technology and robust stud technology.

**Data preprocessing – Data to information**
Reduce data volume to cloud systems, thanks to preprocessing on sensor device. Communication via Modbus RTU.

**Additional Functionalities**

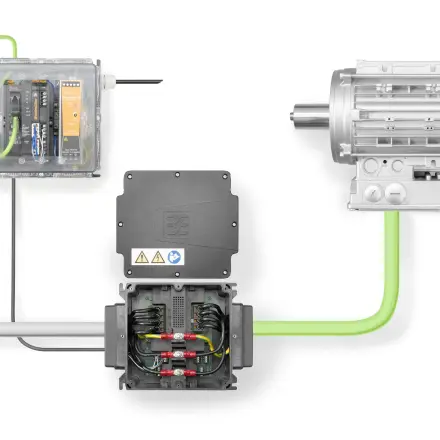

Flexible integration into existing drive infrastructure with star-delta switch connection, hybrid cable connection. Additional information from integrated analog and digital inputs for external sensors.

Smart connectivity solutions

Connectors with integrated, intelligent functions

The development of connectors is influenced by three trends: digitisation, decentralisation and miniaturisation. The integration of sensor and diagnostic functions directly into the connector opens up completely new fields of application and makes additional sensor technology superfluous. Measurands such as current, voltage, power and temperature can be recorded, stored and evaluated via an APP, an ERP/SCADA system or a cloud.

Request your free white paper!

Easy connect unmanaged electrical motors to the IIoT

u-sense energy drives: The perfect retrofit solution. With specially developed products, all components required for digitisation can be easily integrated into existing infrastructures – for seamless data communication from the sensor to the cloud.

It enables the integration of previously non-networked system components into Industrial IoT, such as managed electric motors. In this way, for example, a condition monitoring system can be established, which increases system availability and reduces downtime costs.

Select your downloads (0 selected)

White paper u-sense energy drives

Enter your contact credentials

Salutation

E-Mail

Firstname

Lastname

Company

Country

I agree for my data to be processed by Weidmüller Interface GmbH & Co. KG and related companies for the purposes of receiving a download. I can withdraw my consent at any time by emailing: datenschutz@weidmueller.de . I acknowledge the data privacy notice with further information.

I agree for my data to be processed by Weidmüller Interface GmbH & Co. KG and related companies for the purposes of receiving a regular newsletter. The newsletter contains information about products and services, interesting offers and current promotions from Weidmüller Interface GmbH & Co. KG and related companies. I can withdraw my consent at any time by emailing: datenschutz@weidmueller.de . In addition, every email contains an unsubscribe link. I acknowledge the data privacy notice with further information.

* Required fields

The easy to install solution for IIoT

Why do your e-motors need a connection to IIoT?

Firstly, because continuously automated smart monitoring in combination with Industrial Analytics services prevents unexpected downtimes. But there are more reasons - the video will tell you.

How does u-sense energy drives support your path to IIoT?

u-sense energy drives connect your devices to the industrial Internet of Things and simplify the way to digitalisation. Watch the video to see how you benefit from our solution.

Why is u-sense energy drives a smart sensor?

Be curious, the answer is in the video. In advance already a small spoiler: Our u-sense energy drives is a truly smart sensor from A like easy application to Z like zero downtime of your equipment.
