Maximum contact safety

Maximum contact safety

The high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easier and optimises operational safety. Thanks to the range of models and real flexibility, our modular terminal blocks with clamping yoke technology can be used in a wide range of different applications.

Shortcuts to the online catalogue

Your benefits at a glance

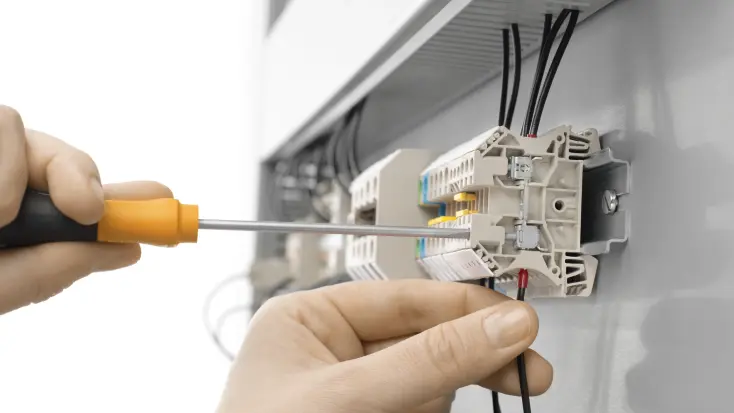

Reliably connects

Reliably connects

Whatever your requirements for the control cabinet are: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety.

Extensive product range

Extensive product range

Thanks to the range of models and real flexibility, our modular terminal blocks with clamping yoke technology can be used in a wide range of different applications.

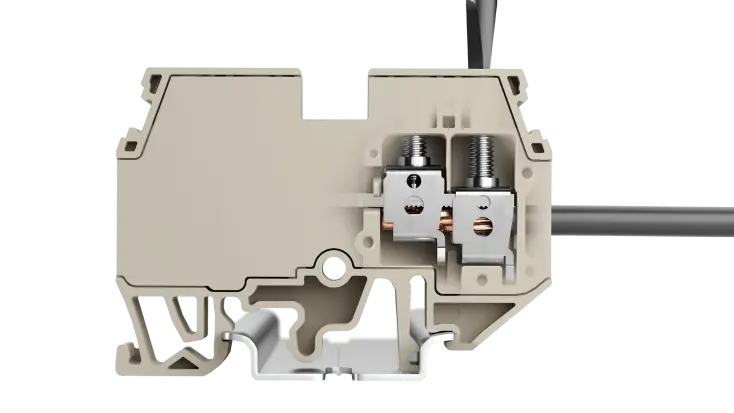

2 conductors for screw

2 conductors for screw

Two conductors of the same diameter can also be connected in a single terminal point in accordance with UL1059. And our W-series is still setting standards.

Terminal Blocks with screw technology

The W-Series offers many convincing benefits and comes in four different designs

Your benefits
  • Quick installation as the products are delivered with open clamping yoke
  • Small "W-Compact" module for space saving installation in the cabinet
  • Protection against incorrect conductor entry
  • Clippable and removable from the terminal rail in either direction
  • Protection against incorrect conductor entry

Available designs

Standard

Standard

Standard

Standard design for all applications

Compact

Compact

Compact

Compact design for smaller applications

Mini

Mini

Mini

Small terminal blocks for junction boxes or enclosure wiring

Multi-pole terminal strips

Multi-pole terminal strips

Multi-pole terminal strips

For junction boxes or enclosure wiring

Product news

Separate potentials simply and safely in confined spaces

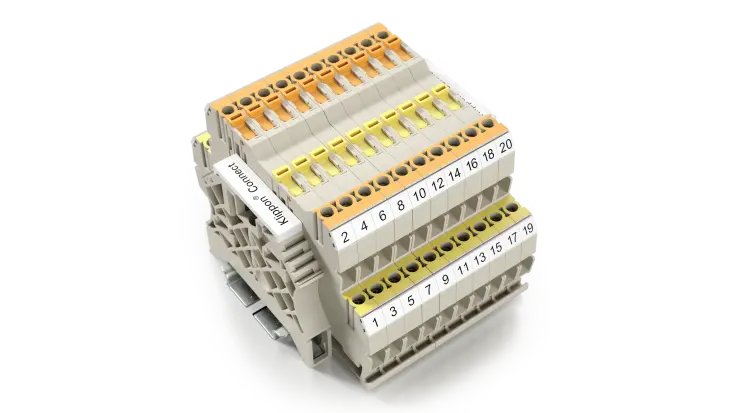

Klippon® Connect test-disconnect terminal blocks

In marshalling cabinets of industrial control systems, signal lines from the field are often connected with terminal blocks. These are known as a robust, simple, and tidy connection option. However, their use requires sufficient current protection and a reliable disconnection circuit.

Our WDTR test-disconnect terminal blocks enable a safe and simple electrical isolation in confined spaces. Two potentials can be operated with only one terminal block, resulting in space-savings of 50%. The multifunctional disconnect section can be converted into a fuse terminal or equipped with a component plug to enable the integration of electronic components.

Separate potentials simply and safely in confined spaces
  • Separation of two different potentials on one terminal block
  • Maximum safety due to colour-contrasted disconnect levers
  • Combination foot for maximum flexibility on TS 32 and TS 35 mounting rails
  • Multifunctional disconnect area for individual applications

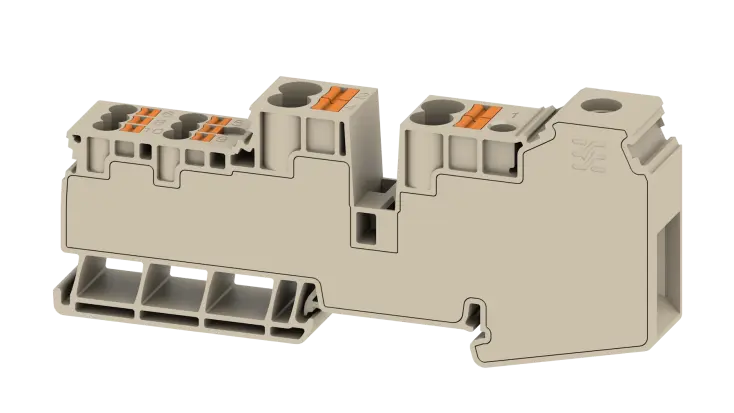

Klippon® Connect AWPD-Potential distribution terminal blocks Product innovation

Our AWPD modular terminal blocks for power distribution combine the advantages of clamping yoke and PUSH IN technology in one product. Power is supplied from the side of the terminal block using a reliable and proven screw connection with clamping yoke technology. The potential is distributed via space-saving PUSH IN connections on the top of the terminal block. This ensures fast, simple, and tool-free wiring even in confined spaces.

Klippon® Connect AWPD-Potential distribution terminal blocks
  • Compatible with Klippon® Connect A-Series
  • Standardised testing point
  • Compact and robust design
  • Distinct contact identification

WPD distribution blocks for potential distribution, new color version

The energy and zero potentials that are fed into machines and plants often need to be distributed even further to supply, for example, motors. Those extensions have to be as safe, efficient, and space-saving as possible. WPD distribution blocks have a unique echelon form and screw heads in an offset position. The latter ensure at every echelon level a safe and comfortable connection in systems and housings, even in confined spaces.

WPD distribution blocks for potential distribution, new color version
  • First phase distribution block with IECEx approval
  • Available in the colours grey, blue, red and black
  • Self-extinguishing, halogen-free plastic housing
  • High finger protection according to EN 50274
  • Short circuit resistance according to high SCCR standard

Safety and protection of electrical circuits

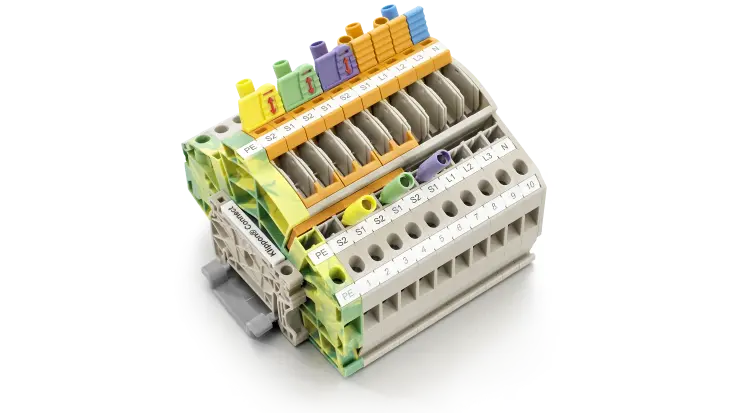

Current protection and disconnection are critical functions in a control cabinet. For optimal protection of man and machine, individual connection solutions should combine these functions within a single system. The new Klippon® Connect fuse terminals with screw connection technology guarantee optimal passive current protection in combination with disconnect terminals. All terminal blocks from our universal range ensure a high degree of flexibility. Their compact dimensions allow flexible installation even in confined spaces.

Safety and protection of electrical circuits
  • Overcurrent protection and separation in a single system
  • Simple handling by easy removal of the fuse holder
  • Contour identical to disconnect terminal WTR 4

Protection of modern PV applications

In the field of photovoltaics, the trend is to install plants with an operating voltage of 1,500 volts. The new Weidmüller WSI 25 10X85 1.5KV fuse terminal blocks protect components in 1,500 V systems from overvoltage. WSI 25 10X85 1.5KV fuse terminal blocks support operating voltages of 1,500 V and have a particularly reliable contact protection. To replace the fuse, the entire fuse holder including the fuse can be removed.

Protection of modern PV applications
  • Simplified fuse replacement by means of completely removable fuse holders
  • Fuse holder with optimum contact protection
  • Support of installations with operating voltages of 1,500 V

Perfect complementation

Benefit from Weidmüller services and market experience

Simple planning through software support

Simple planning through software support

Use the Weidmüller Configurator to quickly and easily configure and request our components. The tool supports continuous engineering workflows, from planning with E-CAD systems through to documentation.

Orange Selection

Orange Selection

Products of the Orange Selection are available at any time. If your order is received by 3 p.m., your items will already be on their way the following day.

Industry experience

Industry experience

We speak the language of our customers. With expertise and passion for variuos industries.

To our industry overview
