Flexible and space-saving

Flexible and space-saving

Safe power supply to equipment such as motors is decisive for the availability of plants and machines. The use of increasingly large wire cross-sections and restricted space in the panel is increasing the demands on modular terminal blocks and distribution blocks - and posing new challenges for panel planners. Our comprehensive product range for power distribution ensures excellent flexibility, even in the planning stages.

Your benefits at a glance

Space saving

Space saving

Space-saving format and variety of functions in a single design

Time saving

Time saving

Optimised design for simple handling and fast installation, even under challenging conditions

Flexibility

Flexibility

A broad range of possible combinations for each requirement

Our product range

Screw connection technology

Screw connection technology

Screw connection technology

Patented clamping yoke technology ensures the ultimate in contact safety

PUSH IN connection technology

PUSH IN connection technology

PUSH IN connection technology

Increase efficiency in installation without compromising on safety

Tension clamp technology

Tension clamp technology

Tension clamp technology

Universal contact system for all common conductor connection types

Stud connection technology

Stud connection technology

Stud connection technology

Established, robust connection alternative for particularly harsh environments

Product news

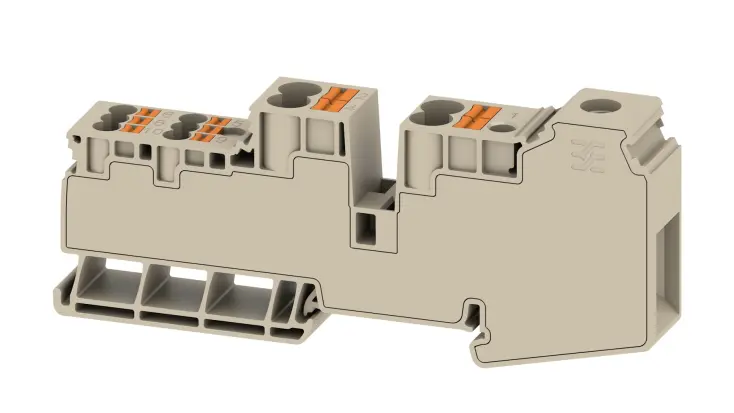

Klippon® Connect AWPD-Potential distribution terminal blocks Product innovation

Our AWPD modular terminal blocks for power distribution combine the advantages of clamping yoke and PUSH IN technology in one product. Power is supplied from the side of the terminal block using a reliable and proven screw connection with clamping yoke technology. The potential is distributed via space-saving PUSH IN connections on the top of the terminal block. This ensures fast, simple, and tool-free wiring even in confined spaces.

Klippon® Connect AWPD-Potential distribution terminal blocks
  • Compatible with Klippon® Connect A-Series
  • Standardised testing point
  • Compact and robust design
  • Distinct contact identification

WPD distribution blocks for potential distribution, new color version

The energy and zero potentials that are fed into machines and plants often need to be distributed even further to supply, for example, motors. Those extensions have to be as safe, efficient, and space-saving as possible. WPD distribution blocks have a unique echelon form and screw heads in an offset position. The latter ensure at every echelon level a safe and comfortable connection in systems and housings, even in confined spaces.

WPD distribution blocks for potential distribution, new color version
  • First phase distribution block with IECEx approval
  • Available in the colours grey, blue, red and black
  • Self-extinguishing, halogen-free plastic housing
  • High finger protection according to EN 50274
  • Short circuit resistance according to high SCCR standard

Space-saving motor connection

Space-saving motor connection

Space-saving motor connection

The unique, three-level design of the AMC motor connection terminals enables safe connections on the smallest footprint. The pluggable, vertical cross-connection allows cross-level wiring. This makes the motor connection terminals a flexible and space-saving energy distribution solution that can even be used as an alternative to potential distribution.

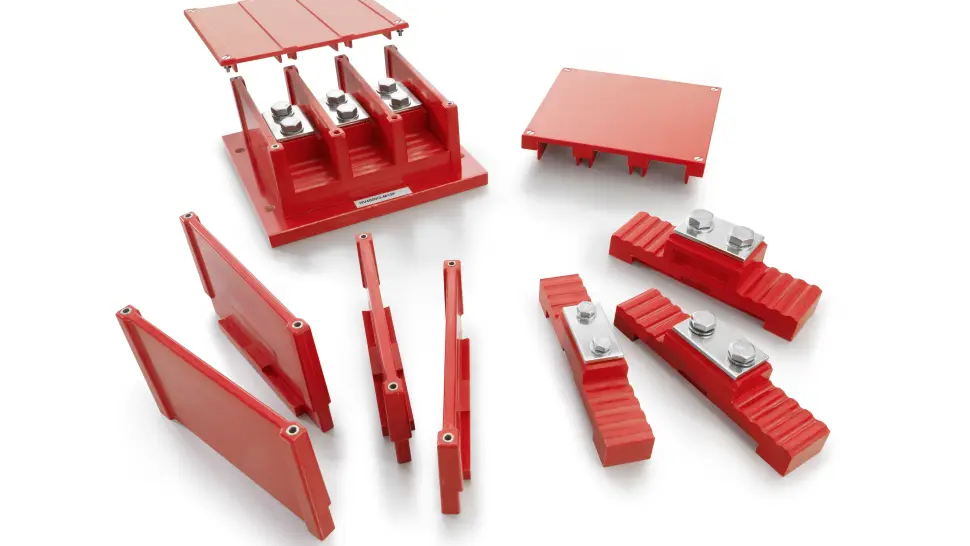

Power Distribution Interface

Power Distribution Interface

Power Distribution Interface

The efficient and reliable distribution of electrical power in a challenging environment requires interface solutions that are optimally designed for the special characteristics of a particular application. Perfect interplay is what you get with our high-current terminal solutions combined with Klippon® Protect enclosures in a weather-proof design. Our HV 2700 und HV 4000 high-voltage terminals provide you with a modular and scalable system which, thanks to the ring cable lug connection system, is a globally recognised and proven railway technology and easy to install anywhere in the world. The products are tested and comply with the requirements of the technical standards EN 50125, EN 50124-1, EN 45545, and IEC 61373.

Compact power feed-in and distribution

Compact power feed-in and distribution

Compact power feed-in and distribution

Klippon® Connect ALO is a standardised system that allows for the feed-in of power with large cross-sections, while also making it possible to further distribute the power within the panel via standard cross-connections. The uniform position of the cross-connection channels allows for convenient potential distribution in all cross-section ranges from 1.5 to 16 mm². Panel planners therefore have a system of terminal blocks for all applications, and can easily carry out subsequent extensions.
