Conducting power, signals and data is the classic requirement in electrical engineering and control cabinet building / switchgear construction. The relevant characteristics are the cross-section (rated cross-section), the insulating material, the connection technology, the type of mounting (for DIN rail or direct mounting on the mounting plate) and the design of the terminals such as the thru terminal block (in the colors grey, blue, green, orange, red, yellow, dark beige, etc.), the protective earth terminal block (ground in green-yellow) or also fuse terminal blocks (black).
With the use of a 2-wire feed through terminal, 3-wire feed through terminal or 4-wire feed through terminal, one or more wires can be brought together and/or connected. They can have one or more connection levels / floors, which are on the same potential or separated from each other. The product portfolio includes feed-through terminal blocks, multi-wire terminal blocks, multi-level terminal blocks such as double-level terminal blocks, three-level terminal blocks or level terminal blocks.
Insulated fine-stranded single wires are simply inserted into the connection point, and the connection point snaps shut with a clearly audible click. The conductor is permanently and reliably contacted. To release the connection, press the pusher. It couldn't be faster or easier.

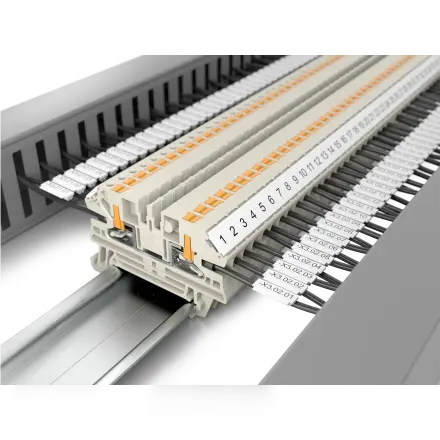

Where installation depth is low, the lateral conductor entry has decisive advantages, because the conductors can be connected without space-consuming bending. Wiring can be carried out very clearly and in a very confined space.
The integrated test tap for standard test probes facilitates maintenance processes and troubleshooting. The wire entry on the side increases clarity and makes the terminal accessible for test systems even when wired.
Due to the lateral conductor entry, markings and functional areas remain easily recognisable even when wired. Maintenance and repair processes can thus be carried out more easily, safely and quickly.
As an integral part of the A-Series, the extensive range of accessories can also be used with the new modular terminal blocks. This facilitates the duplication of potentials via cross-connections and reduces ordering and storage costs.
Increasing automation increases the number of sensors and actuators within the plant. With constant space conditions within the switchgear cabinet, these sensors and actuators must be wired clearly. More compact designs of the components and the increase in wiring density are the resulting requirements for the control cabinet components.
Our A3T 1.5 three-level terminal blocks with 3.5 mm pitch meet these requirements. Depending on the variant, they each carry a different or a common potential on three levels. For example, up to 60 wires can be contacted and 30 different potentials can be routed on a width of 3.5 cm. Each potential can additionally be cross-connected to the neighboring terminal via a ZQV. This achieves maximum wiring density.
Our Klippon® Connect WDUB 16 terminal offers a redundant screw connection at each wire entry. In this way, the increased safety requirements can be met for certain applications while maintaining the required flexibility. Accessories and design match the terminal portfolio with screw connection and the combi foot additionally offers the possibility of mounting on a G32 or TH35 DIN DIN rail.
Increasing automation increases the need to save space in the control cabinet and to work more efficiently. With our A4C 6 terminal block, you get a space-saving solution that meets today's requirements. In addition, you realize a safe and efficient distribution of the current to the power consumers.
On the website Engineering Data you will find an extensive selection of downloads related to CAT data. For the quick integration of our products into your design, a wide range of digital product data is available for engineering systems such as EPLAN (EPLAN Electric P8 and EPLAN Pro Panel), Zuken E3.series, WSCAD and many others. These data allow a precise representation of 2-wire, 3-wire, 4-wire feed-through terminal blocks, multi-wire terminal blocks, multi-level terminal blocks such as double-level terminal blocks, three-level terminal blocks or level terminal blocks in 3D and show all relevant electrotechnical and business features.
